Chemical Transfer Sulphuric Solvent 40m Uhmwpe Hose

Product Categories
Hebei Zebung Rubber Technology Co., Ltd
Contact Now

Chemical Transfer Sulphuric Solvent 40m Uhmwpe Hose

  • 1
  • 2
  • 3

Brand Name : Zebung

Model Number : ZB-UH-03

Certification : ISO9001

Place of Origin : China

MOQ : 300m

Price : Negotiation

Payment Terms : L/C, T/T, D/A, Western Union

Supply Ability : 30000M/DAY

Delivery Time : 7days

Packaging Details : plastic transparent film and color woven bag

Name : Chemical Transfer Sulphuric Solvent Uhmwpe Solvent Acid Chemical Resistant Hose

Size : 3/4"-6"

W.P : 150PSI

Tube : UHMW

Reinforcement : high tensile textile cord with steel wire helix

Surface : fabric Wrapped

Length : 40m 60m or customized length

Application : For chemicals,petroleum products and oils

Contact Now

Chemical Transfer Sulphuric Solvent Uhmwpe Solvent Acid Chemical Resistant Hose

Product Name UHMWPE Chemical Discharge Hose
Color Red, blue, black, white, etc
Material Synthetic Rubber
Cover Wrapped surface
Reinforcement High strength synthetic fabric
Size 3/4"~6"
Feature Acid resistance
W.P. 10/17bar
B.P. 40/68bar
Certification ISO9001

Applications:

Versatile suction and delivery hose specifically designed to convey a wide range of chemicals (solvents and corrosive liquids), pharmaceutical, beverage, dairy, alcohol and other alimentary products. The lining of polyethylene rubber hose can transport concentrated nitric acid, sulfuric acid, hydrochloric acid, inner wall smooth, self-run good; inside and outside the rubber with natural and smooth rubber compound material, the middle layer using imported polyester fiber, work pressure can be based on customer requirements Made of wire weaving and wire weaving, or the use of negative pressure spiral wire plus the environment, this product is only the price of similar imported products 1/3, tetrafluoroethane pipe prices are 1/3, the service life and PTFE tube length , Bending radius of the tetrafluoroethane pipe 1/2, easy to install.


Construction:
Tube: UHMWPE (Ultra High Molecular Weight Polyethylene)
Reinforcement: Multiple textile plies with dual helix wire, antistatic copper wire
Cover: Corrugated black or blue EPDM compound. - abrasion and ozone resistant
Temperature range: -40 °C~+120 °C (-40 °F +248 °F)

Specification:

I.D O.D W.P B.P Bend Radius Weight Length
mm inch mm Psi bar bar mm kg/m m
19 3/4 29 150 10 30 228 0.6 100
25 1 35 150 10 30 300 0.93 100
32 1-1/5 42 150 10 30 320 1.25 60
38 1-1/2 48 150 10 30 380 1.47 60
51 2 64 150 10 30 400 1.92 60
64 2-1/2 78 150 10 30 512 2.4 60
76 3 90 150 10 30 532 2.9 60
102 4 117 150 10 30 630 3.92 30
127 5 143 150 10 30 760 6.5 30
152 6 168 150 10 30 912 7.7 30
NOTE: Other sizes, pressure and colors available on request.

Chemical Transfer Sulphuric Solvent 40m Uhmwpe Hose
Chemical Transfer Sulphuric Solvent 40m Uhmwpe Hose


Product Tags:

40m chemical transfer hose



40m uhmwpe hose



sulphuric solvent uhmwpe hose


Wholesale Chemical Transfer Sulphuric Solvent 40m Uhmwpe Hose from china suppliers

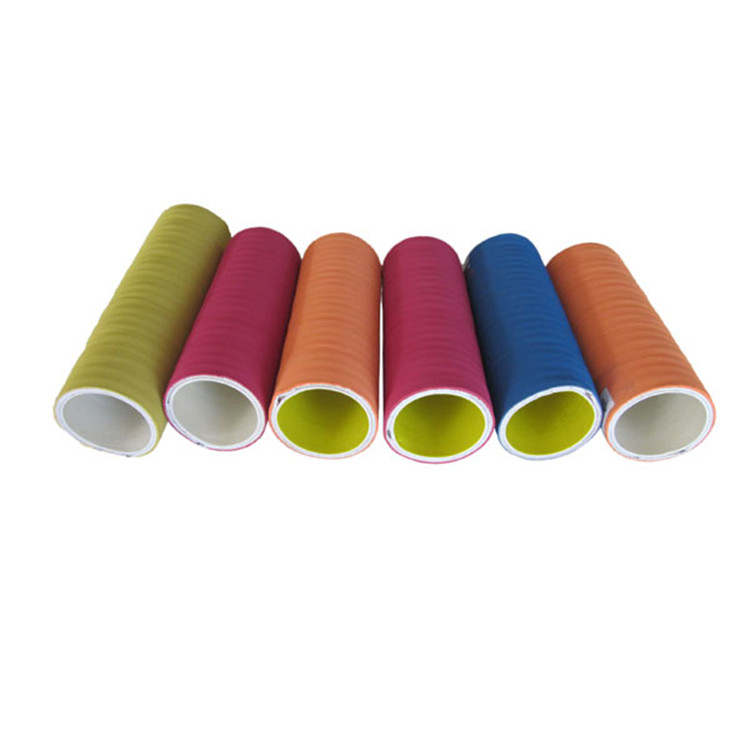

Chemical Transfer Sulphuric Solvent 40m Uhmwpe Hose Images
